This RF antenna assembly supports dual-band operation at 2.4–2.5 GHz and 5.15–5.85 GHz, offering stable performance with a maximum VSWR of 2.0 and a gain of 3 dBi. Designed with a 50 Ω impedance, it ensures reliable wireless connectivity. The antenna features an MHF plug and a standard 60 mm cable length, with optional lengths available to meet various design needs.
Smarter Connections for a Smarter World

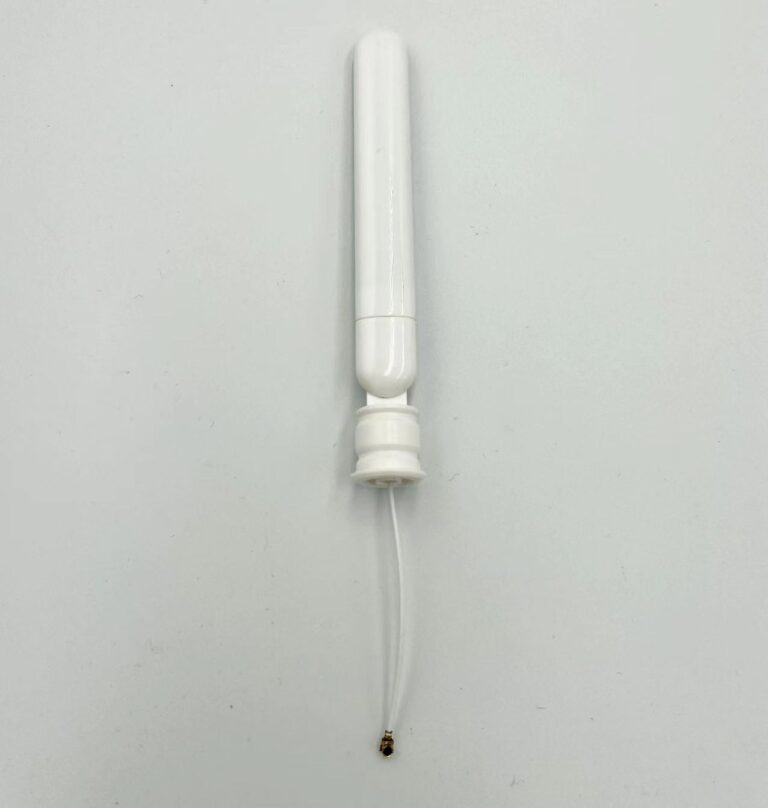

RF Antenna Assembly
Model Number
503058-0001-0DC
Type
RF Antenna Assembly
Brand
LITE
Material
1. RF Cable: 1.13 Cable
2. Antenna Sleeve: ABS White
3. RF Connector: MHF Plug
Frequency
2.4 GHz & 5 GHz
VWSR
2.0 MAX
Gain
3 dBi
Product Details
faq
Q.
Can you provide sample?
Q.
How long is for the lead time?
Q.
Can you make customized products/packing?
