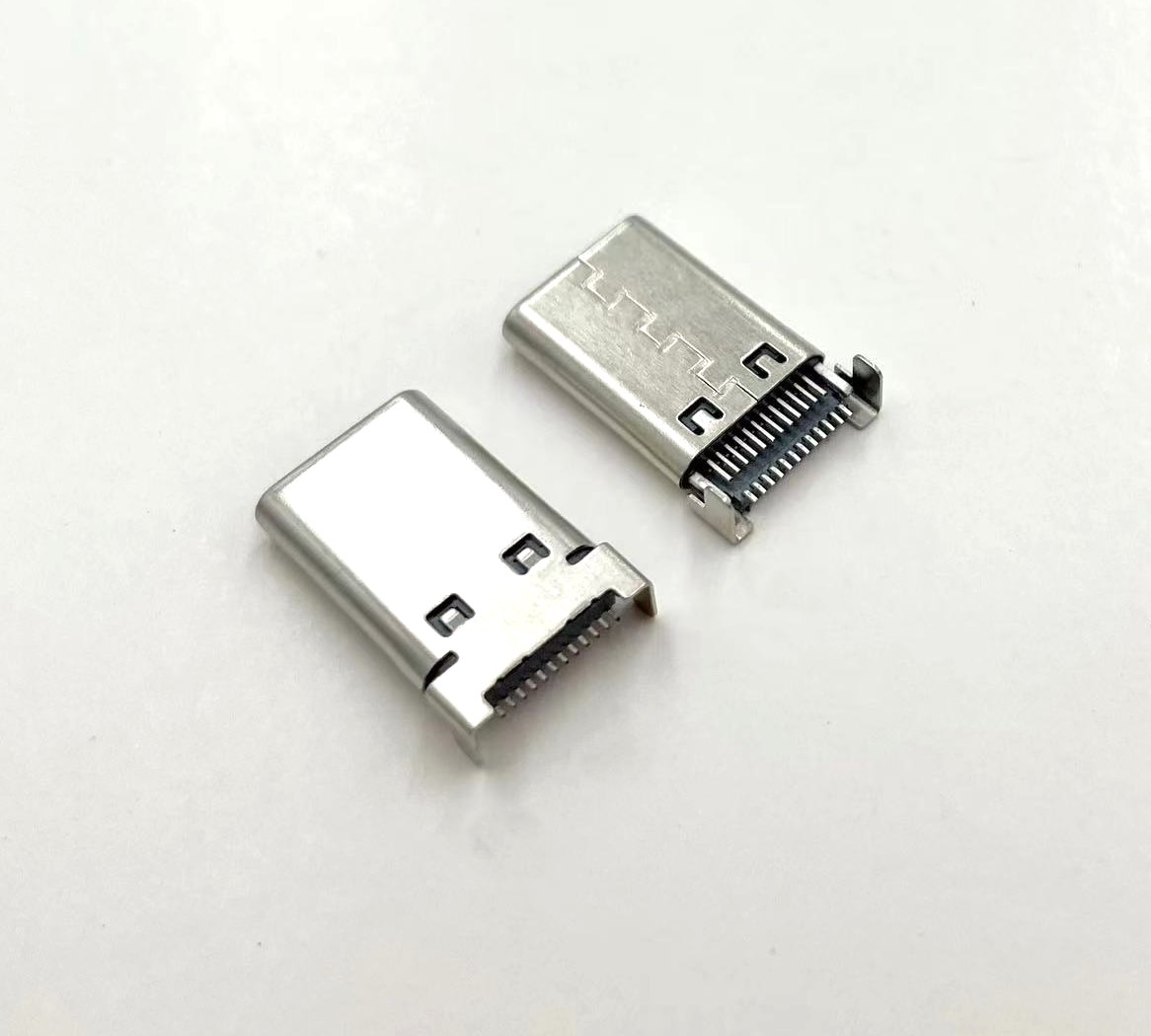

USB Type-C plug with 24 pins, supporting 5A current and USB 2.0 data rate. SMT mounting and durable design with ≥10,000 mating cycles. RoHS compliant for reliable and environmentally safe performance.
Smarter Connections for a Smarter World
USB C Connector
Product Type
USB C Connector
Part Number
145224-0411-M5A
Rated Current
5A
Dielectric Withstanding Voltage
100 VAC
Contact Resistance
40mohms Max.
Insertion Force
5~20N
Insulation Resistance
100M Ohms Min.
Product Details
